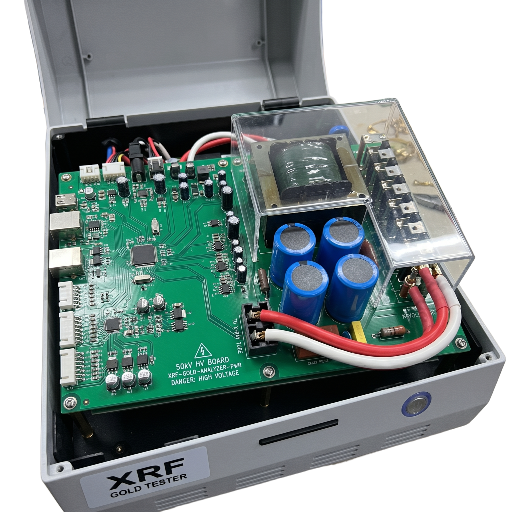

50KV - HIGH VOLTAGE BOARD

Technical Functions

• High-voltage generation and regulation
• X-ray tube power management
• Tube voltage control (50kV class configuration)
• Tube current monitoring and stabilization
• Safety interlock integration
• Over-voltage / fault protection
• Controlled startup and shutdown sequencing

Typical Features

• 50kV operating class support
• High-stability output regulation
• Low-noise power architecture
• Industrial electronics design
• Protection and diagnostic circuitry
• System control interface compatibility

Applications

• XRF gold testing machines
• Precious metal analyzers
• Coating thickness measurement systems
• Industrial XRF spectroscopy platforms
• Material composition analysis equipment
